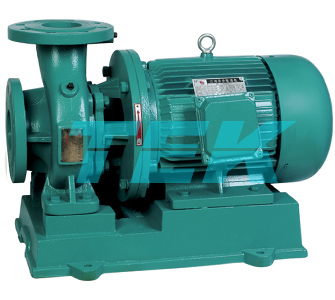

ISW Centrifugal Pump

Product Introduction：
ISW series single-stage single-suction vertical pipeline centrifugal pump is the second generation of high efficiency energy-saving product designed by our company based on many years of production experience as per the performance parameters stated in the international standard ISO2858 and the national standard JB/T6878.2-93.It is an ideal substitute for normal pumps like multi-stage centrifugal pumps. The series has a flow range of 1.5-1600m3/h and a lift head range of 5-125m, which includes many specifications like basic, diversion and cutting types. Accordingly this series can be widely applied to replace the normal centrifugal pump completely to be used in all cases.
Range of Application:
Industrial and urban water supply, pressurization of water supply network, daily and fire water supply for constructions, central air conditioning system, cyclic pressurization for other cold and hot clean medium.

Type Designation：
ISW – Single-stage Single-suction Horizontal Centrifugal Pump
100 – Diameter of pump inlet and outlet (mm)
160 – Nominal diameter of impeller (mm)
I – Flow classification
A – Primary cutting of impeller
B – Secondary cutting of impeller

Technology Parameters:
Flow：4-1200m3/h；
Head：5-150m；
Power：0.55-250kw；
Rotary speed：980-2900r/min；
Calibre：25-500mm；
Temperature range：-20℃-+120℃。

Product Power： 0.55-250KW

Model		Power	Flow(Q)		Head	Eff.	Speed	NPSH	Weight
Model		(KW)	(m3/h)	(L/S)	(m)	(%)	(r/min)	( r )	(kg)
ISW	50-100	1.1	12.5	3.47	12.5	62	2900	2.3	36
ISW	50-100A	0.75	11	3.05	10	60	2900	2.3	35
ISW	50-125	1.5	12.5	3.47	20	58	2900	2.3	43
ISW	50-125A	1.1	11	3.05	16	57	2900	2.3	38
ISW	50-160	3	12.5	3.47	32	52	2900	2.3	59
ISW	50-160A	2.2	11.7	3.25	28	51	2900	2.3	51
ISW	50-160B	1.5	10.4	2.89	22	50	2900	2.3	47
ISW	50-200	5.5	12.5	3.47	50	46	2900	2.3	101
ISW	50-200A	4	11.7	3.25	44	45	2900	2.3	80
ISW	50-200B	3	10.6	2.94	36	44	2900	2.3	68
ISW	50-250	11	12.5	3.47	80	38	2900	2.3	160
ISW	50-250A	7.5	11.6	3.22	70	38	2900	2.3	115
ISW	50-250B	5.5	10.8	3	60	37	2900	2.3	114
ISW	50-250C	5.5	10	2.78	52	36	2900	2.3	108
ISW	50-100(I)	1.5	25	6.94	12.5	69	2900	2.5	41
ISW	50-100(I)A	1.1	22.3	6.19	10	67	2900	2.5	36
ISW	50-125(I)	3	25	6.94	20	68	2900	2.5	56
ISW	50-125(I)A	2.2	22.3	6.19	16	66	2900	2.5	48
ISW	50-160(I)	4	25	6.94	32	63	2900	2.5	72
ISW	50-160(I)A	3	23.4	6.5	28	62	2900	2.5	71
ISW	50-160(I)B	2.2	21.6	6	24	58	2900	2.5	59
ISW	50-200(I)	7.5	25	6.94	50	58	2900	2.5	108
ISW	50-200(I)A	5.5	23.5	6.53	44	57	2900	2.5	107
ISW	50-200(I)B	4	21.8	6.06	38	55	2900	2.5	100
ISW	50-250(I)	15	25	6.94	80	50	2900	2.5	175
ISW	50-250(IA)	11	23.4	6.5	70	50	2900	2.5	165
ISW	50-250(I)B	7.5	21.6	6	60	49	2900	2.5	165
ISW	50-315(I)	30	25	6.94	125	40	2900	2.5	310
ISW	50-315(I)A	22	23.7	6.58	113	40	2900	2.5	245
ISW	50-315(I)B	18.5	22.5	6.25	101	39	2900	2.5	215
ISW	50-315(I)C	15	20.6	5.72	85	38	2900	2.5	195

ISW	65-100	1.5	25	6.94	12.5	69	2900	2.5	46
ISW	65-100A	1.1	22.3	6.19	10	67	2900	2.5	41
ISW	65-125	3	25	6.94	20	68	2900	2.5	58
ISW	65-125A	2.2	22.3	6.19	16	66	2900	2.5	49
ISW	65-160	4	25	6.94	32	63	2900	2.5	75
ISW	65-160A	3	23.4	6.5	28	62	2900	2.5	75
ISW	65-160B	2.2	21.6	6	24	58	2900	2.5	63
ISW	65-200	7.5	25	6.94	50	58	2900	2.5	107
ISW	65-200A	5.5	23.5	6.53	44	57	2900	2.5	107
ISW	65-200B	4	21.8	6.06	38	55	2900	2.5	100
ISW	65-250	15	25	6.94	80	50	2900	2.5	180
ISW	65-250A	11	23.4	6.5	70	50	2900	2.5	170
ISW	65-250B	7.5	21.6	6	60	49	2900	2.5	170
ISW	65-315	30	25	6.94	125	40	2900	2.5	320
ISW	65-315A	22	23.7	6.58	113	40	2900	2.5	255
ISW	65-315B	18.5	22.5	6.25	101	39	2900	2.5	225
ISW	65-315C	15	20.6	5.72	85	38	2900	2.5	205
ISW	65-100(I)	3	50	13.9	12.5	73	2900	3	63
ISW	65-100(I)A	2.2	44.7	12.4	10	72	2900	3	53
ISW	65-125(I)	5.5	50	13.9	20	72.5	2900	3	99
ISW	65-125(I)A	4	45	12.5	16	71	2900	3	78
ISW	65-160(I)	7.5	50	13.9	32	71	2900	3	103
ISW	65-160(I)A	5.5	46.7	13	28	70	2900	3	103
ISW	65-160(I)B	4	43.3	12	24	69	2900	3	97
ISW	65-200(I)	15	50	13.9	50	67	2900	3	176
ISW	65-200(I)A	11	47	13.1	44	66	2900	3	166
ISW	65-200(I)B	7.5	43.5	12.1	38	65	2900	3	114
ISW	65-250(I)	22	50	13.9	80	59	2900	3	235
ISW	65-250(I)A	18.5	46.7	13	70	59	2900	3	205

ISW	80-250(I)	37	100	27.8	80	69	2900	4	330
ISW	80-250(I)A	30	93.5	26	70	68	2900	4	315
ISW	80-250(I)B	22	87	24.2	60	66	2900	4	315
ISW	80-315(I)	75	100	27.8	125	66	2900	4	675
ISW	80-315(I)A	55	95	26.4	113	66	2900	4	535
ISW	80-315(I)B	45	90	25	101	65	2900	4	420
ISW	80-315(I)C	37	82	22.8	85	63	2900	4	36

ISW	100-100	5.5	100	27.8	12.5	76	2900	4.5	113
ISW	100-100A	4	89	47	10	74	2900	4.5	91
ISW	100-125	11	100	27.8	20	76	2900	4.5	169
ISW	100-125A	7.5	89	24.7	16	74	2900	4.5	118
ISW	100-160	15	100	27.8	32	76	2900	4.5	191
ISW	100-160A	11	93.5	26	28	74	2900	4.5	181
ISW	100-160B	7.5	86.6	24.1	24	72	2900	4.5	181
ISW	100-200	22	100	27.8	50	74	2900	4	245
ISW	100-200A	18.5	93.5	26	44	73	2900	4	215
ISW	100-200B	15	87	24.2	38	71	2900	4	193
ISW	100-250	37	100	27.8	80	69	2900	4	345
ISW	100-250A	30	93.5	26	70	68	2900	4	330
ISW	100-250B	22	87	24.2	60	66	2900	4	330
ISW	100-315	75	100	27.8	125	66	2900	4	689
ISW	100-315A	55	95	26.4	113	66	2900	4	549
ISW	100-315B	45	90	25	101	65	2900	4	439
ISW	100-315C	37	82	22.8	85	63	2900	4	385
ISW	100-100(I)	11	160	44.4	12.5	73	2900	4.5	115
ISW	100-125(I)	15	160	44.4	20	74	2900	4.5	168
ISW	100-125(I)A	11	140	39	17	72	2900	4.5	168
ISW	100-160(I)	22	160	44.4	32	79	2900	5.6	210
ISW	100-160(I)A	18.5	140	39	28	76	2900	5	210
ISW	100-200(I)	37	160	44.4	50	79	2900	5.2	402
ISW	100-200(I)A	30	140	39	45	74	2900	4.5	395
ISW	100-200(I)B	22	100	27.8	40	72	2900	4.5	360
ISW	100-250(I)	55	160	44. 4	80	77	2900	4.8	560
ISW	100-250(I)A	45	140	39	72	72	2900	4.5	420
ISW	100-250(I)B	37	100	27.8	65	70	2900	4.5	400
ISW	100-350	90	100	27.8	153.6	57	2900	4	950
ISW	100-350A	75	87	24.2	142	75	2900	4	830
ISW	100-350B	55	82	22.8	135	75	2900	4	600

ISW	125-100	11	160	44.4	12.5	82	2900	4	180
ISW	125-100A	7.5	143	39.7	10	77	2900	4	125
ISW	125-125	15	160	44.4	20	80	2900	4	220
ISW	125-125A	11	143	39.7	16	77	2900	4	210
ISW	125-160	22	160	4.4	32	78	2900	4	265
ISW	125-160A	18.5	150	41.7	28	76	2900	4	230
ISW	125-160B	15	138	38.3	24	73	2900	4	215
ISW	125-200	37	160	44.4	50	77	2900	5.5	395
ISW	125-200A	30	150	41.7	44	76	2900	5.5	380
ISW	125-200B	22	138	38.3	37.5	75	2900	5.5	320
ISW	125-250	55	160	44.4	80	75	2900	5.5	580
ISW	125-250A	45	150	41.7	70	74	2900	5.5	490
ISW	125-250B	37	138	38.3	60	73	2900	5.5	430
ISW	125-315	90	160	44.7	125	70	2900	5.5	790
ISW	125-315A	75	150	41.7	110	70	2900	5.5	710
ISW	125-315B	75	143	39.7	100	69	2900	5.5	705
ISW	125-315C	55	134	37.2	88	67	2900	5.5	585

ISW	150-125	11	160	44.4	24	76	2900	4	210
ISW	150-125A	7.5	150	41.7	16	77	2900	4	130
ISW	150-160	22	160	44.4	32	75	2900	4	270
ISW	150-160A	18.5	150	41.7	28	76	2900	4	230
ISW	150-160B	15	140	39	24	73	2900	4	220
ISW	150-200	15	200	55.6	12.5	78	1450	3	265
ISW	150-200A	11	176	49.7	10	76	1450	3	244
ISW	150-200B	22	140	39	38	75	1450	4	275
ISW	150-250	18.5	200	55.6	20	79	1450	3	300
ISW	150-250A	15	184.4	51.2	17	78	1450	3	262
ISW	150-250B	11	167	46.4	14	76	1450	3	241
ISW	150-315	30	20	55.6	32	78	1450	2.5	410
ISW	150-315A	22	187	51.9	28	77	1450	3.5	335
ISW	150-315B	18.5	173	48.1	24	76	1450	3.5	315
ISW	150-350	110	160	44.4	150	80	2900	5.5	970
ISW	150-350A	90	150	41.7	142	70	2900	5.5	790
ISW	150-350B	75	140	39	135	76	2900	5.5	705
ISW	150-400	45	200	55.6	50	75	1450	3.5	490
ISW	150-400A	37	187	51.9	44	74	1450	3.5	454
ISW	150-400B	30	174	48.3	38	73	1450	3.5	435
ISW	150-400C	22	160	44.4	32	71	1450	3.5	365
ISW	150-250(I)	75	200	55.6	80	76	2900	4.5	702
ISW	150-250(I)A	55	187	51.9	70	75	2900	4.5	561
ISW	150-250(I)B	45	173	48.1	60	74	2900	4.5	460
ISW	150-315(I)	110	20	55.6	125	73	2900	4.5	980
ISW	150-315(I)A	90	187	51.9	110	72	2900	4.5	800
ISW	150-315(I)B	75	173	48.1	95	70	2900	4., 5	724

ISW	200-200	15	200	55.6	12.5	78	1450	3	265
ISW	200-200A	11	179	49.7	10	76	1450	3	244
ISW	200-250	18.5	200	55.6	20	79	1450	3	305
ISW	200-250A	15	184.4	51.2	17	78	1450	3	267
ISW	200-250B	11	167	46.4	14	76	1450	3	246
ISW	200-315	30	200	55.6	32	78	1450	3.5	417
ISW	200-315A	22	189	51.9	28	77	1450	3.5	342
ISW	200-315B	18.5	173	48.1	24	76	1450	3.5	322
ISW	200-400	45	200	55.6	50	75	1450	3.5	498
ISW	200-400A	37	187	51.9	44	74	1450	3.5	462
ISW	200-400B	30	174	48.6	38	73	1450	3.5	443
ISW	200-400C	22	160	44.4	32	71	1450	3.5	373
ISW	200-200(I)	22	400	111.1	12.5	80	1450	4	382
ISW	200-200(I)A	18.5	358	99.4	10	78	1450	4	346
ISW	200-250(I)	30	400	111.4	20	80	1450	4	475
ISW	200-250(I)A	22	358	99.6	14	78	1450	4	405
ISW	200-250(I)B	18.5	322	89.4	13	75	1450	4	387
ISW	200-315(I)	55	400	111.4	32	80	1450	4	675
ISW	200-315(I)A	45	374	103.9	28	79	1450	4	560
ISW	200-315(I)B	37	346	96.1	24	78	1450	4	535
ISW	200-400(I)	75	400	111.4	50	81	1450	4	830
ISW	200-400(I)A	75	374	103.9	44	80	1450	4	830
ISW	200-400(I)B	55	346	96.1	38	78	1450	5	685
ISW	200-400(I)C	45	320	88.9	32	76	1450	5	580

ISW	250-250	45	550	152.8	20	82	1450	5	620
ISW	250-250A	37	500	139	17	80	1450	5	550
ISW	250-235	22	500	139	12.5	78	1480	4.5	410
ISW	250-300	37	500	139	20	78	1480	4.5	550
ISW	250-315	75	550	152.8	32	80	1450	5.5	890
ISW	250-315A	55	500	139	28	78	1450	5.5	690
ISW	250-315B	45	450	125	24	74	1450	5.5	620
ISW	250-400	90	500	139	50	72	1480	4.5	1530
ISW	300-235	55	720	200	18	81	1450	5	1075
ISW	300-235A	45	600	166	15	79	1450	5	970
ISW	300-235B	37	540	150	12.8	78	1450	5	925
ISW	300-250	55	720	200	20	83	1450	6	1085
ISW	300-250A	45	600	166	17	81	1450	6	980
ISW	300-300	75	720	200	28	82	1480	5	1230
ISW	300-300A	75	600	166	24	80	1480	5	1095
ISW	300-300B	55	540	150	21	78	1480	5	980
ISW	300-315	90	720	200	32	84	1480	4.5	1350
ISW	300-315A	75	650	180	28	80	1480	4.5	1240
ISW	300-315B	55	580	151	24	78	1480	4.5	1100
ISW	300-380	132	720	200	44	84	970	5	1900
ISW	300-380A	110	666	185	38	80	970	5	1700
ISW	300-380B	90	614	170.6	32	78	970	5	1530
ISW	300-390	55	720	200	18	81	980	5	1300
ISW	300-390A	45	600	167	15	79	980	5	1220
ISW	300-390B	37	540	150	12.5	77	980	5	1100
ISW	300-400	110	600	166	50	78	1480	5	1500
ISW	300-480	75	720	200	28	81	980	5	1500
ISW	300-480A	75	600	166	24	80	980	5	1280
ISW	300-480B	55	540	150	21	79	980	5	1180

ISW	350-235	37	800	222	12.5	83	1480	4.5	1050
ISW	350-300	55	800	222	20	82	1480	4.5	1230
ISW	350-315	90	800	222	32	84	1480	4.5	1650
ISW	350-400	160	800	222	50	83	1480	4.5	1950
ISW	400-300	90	1080	300	20	78	1480,	6	1570
ISW	400-315	132	1080	300	32	76	1480	6	1880
ISW	500-300	110	1200	333	20	80	1480	6	1800
ISW	500-315	160	1200	333	32	78	1480	6	2070
