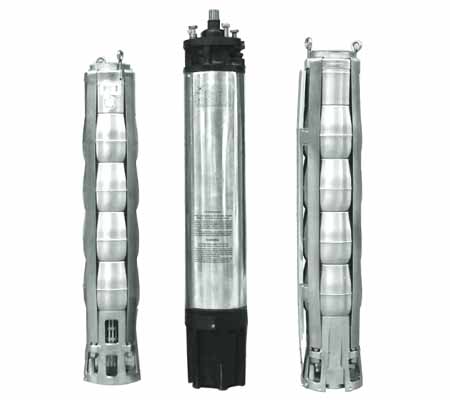

8TS 8 Inch SS Deep Well Submersible Pumps
Typical applications
Water supply and irrigation system
Lowering underground water level
Booster
Various industrial applications
Working conditions
Solid grain-or-fiber-free dilute clean non-corrosive liquids;
Maximum liquid temperature:20

Maximunm working pressure:30 bar
PH:6.5~8.5
Maxium diving depth:<=50m
Scope of application
This series is applicable to circulation and pressurizing of the clean water and softened water;
This series is made from stainless steel 304 and has good corrosive resistance for conveying cold water containing small amount of oxides. It is also used for conveying slightly alkaline water and de-mineralized water.Pump made from stainless steel 316 and FPM is applicable to conveying highly corrosive liquid.
Curve conditions
The curve tolerance complies with ISO9906 shown in attachment A.
All curves are based on the measured values of 3*380V, 50HZ,2850r/min.
All measurements are carried out with gas-free water of temperature 20
.The curve is applicable to kinematical viscosity 1mm2/s.In case density of the liquid conveyed by the pump is higher than that of water,it is necessary to use corresponding motor of higher output power.
The coarse part of the curve means the recommended performance scope.
The performance curce includes loss caused by check valve etc.
Performance curve
Q/H curve means flow and the curve of lifting height under the rated speed.
Power curve:P2 means input power of each grade
Efficiency curve:Eta means the grade efficiency of the pump
Product Power: 7.5-75KW


Model

Power

Rated Flow

Head

Speed

kw

m3/h

m

rpm

8TS75









8TS75-2

7.5

75

25

2900

8TS75-3

11

75

38

2900

8TS75-4

15

75

52

2900

8TS75-5

18.5

75

65

2900

8TS75-6

22

75

79

2900

8TS75-7

30

75

93

2900

8TS75-8

30

75

107

2900

8TS75-9

37

75

121

2900

8TS75-10

37

75

135

2900

8TS75-11

45

75

148

2900

8TS75-12

45

75

162

2900

8TS75-13

55

75

175

2900

8TS75-14

55

75

188

2900

8TS75-15

55

75

201

2900

8TS75-16

63

75

215

2900

8TS75-17

63

75

229

2900

8TS75-18

75

75

243

2900

8TS75-19

75

75

257

2900

8TS75-20

75

75

271

2900

8TS95









8TS95-2

9.2

95

20

2900

8TS95-3

13

95

30

2900

8TS95-4

18.5

95

41

2900

8TS95-5

22

95

51.5

2900

8TS95-6

25

95

62

2900

8TS95-7

30

95

73

2900

8TS95-8

37

95

84

2900

8TS95-9

37

95

95

2900

8TS95-10

45

95

106

2900

8TS95-11

45

95

117

2900

8TS95-12

55

95

129

2900

8TS95-13

55

95

141

2900

8TS95-14

55

95

153

2900

8TS95-15

63

95

166

2900

8TS95-16

63

95

178

2900

8TS95-17

75

95

190

2900

8TS95-18

75

95

202

2900
