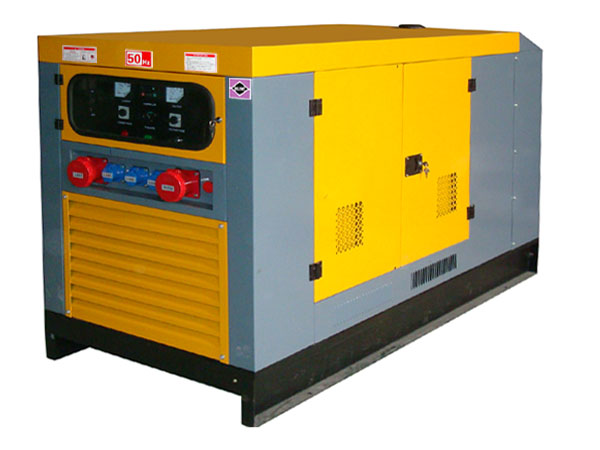

GFS Soundproof generator sets are suitable for areas with strict requirments on noise and other special requirments as telecom, bank, large building, airport etc. Soundproof generator sets are scientificly designed by using advanced technologies on acoustics and breath subject, adopt brand-name engine and generator and high quality of AVR, fine performances, high reliability, graceful in shape for outside cover, easy to dismantle, compact structure. Our products meet the standards ISO8528 and GB2820.
In technical datas, all datas are typical on engine and generator. It also is selected for adopting other engine and generator, may see the data for common generator set.



Model	GFS-10	GFS-12	GFS-15	GFS-20	GFS-24	GFS-30	GFS-50
Rated Power( KW )	10	12	15	20	24	30	50
Rated Volt.( V )	400	400	400	400	400	400	400
Rated Curr.( A )	18.1	21.6	27.1	36.2	43.3	54.1	90.2
Engine
Model	295AD	2100AD	395AD	495AD-13	495AZD-13	495AZD-13	4135D
Rated Power (KW)	13.8	15.3	20.6	26.5(36)	35.3(48)	35.3(48)	58.8(80)
Fuel Consumption g/kw*h	258.4	258.4	254.2	265.2(195)	233.79172)	238(175)	238(175)
Start Type	Electric( DC12/24V )
Excitation Genarator	STC-10	STC-12	STC-15	STC-10	STC-24	STC-30	STC-50
Rated Power(KW)	10	12	15	20	24	30	50
Excitation	Brush
Net Weight kg	800	850	980	1480	1580	1950	2500
Model	GFS-75	GFS-90	GFS-120	GFS-150	GFS-200	GFS-250	GFS-300
Rated Power( KW )	75	90	120	150	200	250	300
Rated Volt.( V )	400	400	400	400	400	400	400
Rated Curr.( A )	135.3	162.4	216.5	270.6	361	451	451
Engine
Model	6135D	6135AD	6135AZD	12V135D	12V135AD	12V135AZD	12V135AZD
Rated Power (KW)	88.2(108)	110.3(150)	154.4(210)	176.5(240)	236.8(315)	236.8(315)	236.8(315)
Fuel Consumption g/kw*h	238(175)	238(175)	238(175)	238(175)	238(175)	238(175)	238(175)
Start Type	Electric( DC12/24V )
Excitation Generator	STF-75	STF-90	STF-120	STF-150	STF-200	STF-250	STF-300
Rated Power(KW)	75	90	120	150	200	250	300
Excitation	Brush or Brushless
Net Weight kg	3000	3180	3900	4900	5200	5830	6180
