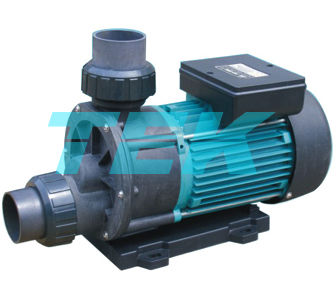

WPA Whirlpool Bathtub Pump

STRUCTURAL CHARACTERISTICS
PUMP BODY:

Made from fiberglass reinforced technopolymer, with UIN ISO 228/1 gas
threaded suction and delivery openings.
PUMP BODY COVER: aluminium, serving also as mechanical seal horsing.
EJECTOR UNION: plastic PPO (approved for drinking water)
IMPELLER: . plastic PPO
MOTOR SHAFT: AISI 314 stainless steel.
MECHANICAL SEAL: ceramic and graphite.
MOTOR:
The pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
INSULATION: class B (Class F)
PROTECTION: IP 44.
WARRANTY: 1 year.

Product Power£º 0.6-1.5kw



Model

Power

Q.Max

H.Max

Suct.Max

Speed

In/Outlet

Packing Dim.

G.W

Kw

HP

L/min

m

m

rpm

inch

(mm)

(kg)

WPA-35

0.26

0.35

190

10

9

2850

48.5

400¡Á210¡Á210

6.4

WPA-50

0.37

0.5

220

10

400¡Á210¡Á210

7

WPA-75

0.55

0.75

250

11

420¡Á230¡Á230

7.6

WPA-100

0.75

1.0

290

11.5

420¡Á230¡Á230

8.2

WPA-125

0.95

1.25

320

14

420¡Á230¡Á230

9.2

WPA-150

1.1

1.5

400

15

420¡Á230¡Á230

10.3

WPA-200

1.5

2.0

480

17.5

440¡Á250¡Á240

12
