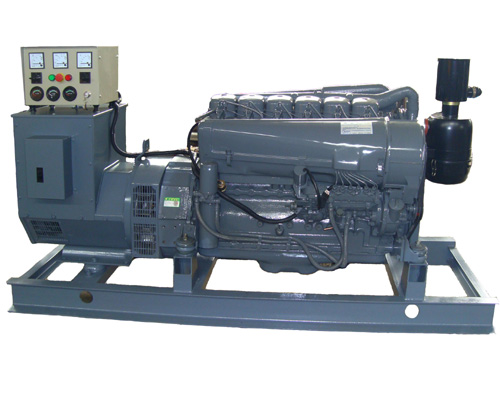

TEK-DEUTZ GFDF 道依茨风冷发电机组
|
|
Technical Data
Power coverage from 10kw~100kw
Model: GF: Open type &GFS: Soundproof /Silent/Supper silent type
Engine: DEUTZ
Speed: 1500/1800rpm
Alternator: Stamford / Leroysomer / Marathon / ABB / TEK Generator
IP &Insulation Class: IP22-23 &F/H
Frequency: 50/60HZ
Controller: Deepsea/Comap/Smartgen/DKG/Others
ATS System: Smartgen / ABB / SOCOMIC / Others
Silent & Supper silent Gen-set Sound level: 63-75db(at 7m side) |
| 产品功率：
10-120KW |
|
Model |
Prime power |
Standby power |
Fre. |
Engine Model |
Power |
Govering |
Intaking |
Fuel Com. |
Bore/stroke |
Displacement |
|
KW |
KVA |
KW |
KVA |
HZ |
KW |
Method |
G/kw.h |
(mm) |
(L) |
|
GF/GFS-D10F |
10 |
12.5 |
11 |
13.8 |
50 |
F2L912D |
14 |
mechanical |
Naturally |
238 |
100/120 |
1.88 |
|
GF/GFS-D12F |
12 |
15 |
13.2 |
16.5 |
50 |
F2L912D |
14 |
mechanical |
Naturally |
238 |
100/120 |
1.88 |
|
GF/GFS-D13F |
13 |
16.3 |
14.3 |
17.9 |
60 |
F2L912D |
17 |
mechanical |
Naturally |
238 |
100/120 |
1.88 |
|
GF/GFS-D15F |
15 |
18.8 |
18.5 |
20.6 |
50 |
F3L912D |
24 |
mechanical |
Naturally |
232 |
100/120 |
2.828 |
|
GF/GFS-D18F |
18 |
22.5 |
19.8 |
25 |
50 |
F3L912D |
24 |
mechanical |
Naturally |
232 |
100/120 |
2.828 |
|
GF/GFS-D20F |
20 |
25 |
22 |
27.5 |
50 |
F3L912D |
24 |
mechanical |
Naturally |
232 |
100/120 |
2.828 |
|
GF/GFS-D24F |
24 |
30 |
26.4 |
33 |
50 |
F4L912D |
32 |
mechanical |
Naturally |
228 |
100/120 |
3.77 |
|
GF/GFS-D30F |
30 |
37.5 |
33 |
41 |
50 |
F4L912TD |
41 |
mechanical |
Turbo |
228 |
100/120 |
3.77 |
|
GF/GFS-D34F |
34 |
42.5 |
36.4 |
46.8 |
50 |
F4L912TD |
41 |
mechanical |
Turbo |
228 |
100/120 |
3.77 |
|
GF/GFS-D40F |
40 |
50 |
44 |
55 |
50 |
F6L912D |
48 |
mechanical |
Naturally |
228 |
100/120 |
5.655 |
|
GF/GFS-D44F |
44 |
48 |
55 |
60 |
50 |
F6L913D |
51 |
mechanical |
Naturally |
228 |
102/125 |
6.128 |
|
GF/GFS-D50F |
50 |
62.5 |
55 |
69 |
50 |
F6L912TD |
60 |
mechanical |
Turbo |
228 |
100/120 |
5.655 |
|
GF/GFS-D54F |
54 |
68 |
60 |
75 |
60 |
F6L913D |
65 |
mechanical |
Naturally |
228 |
102/125 |
6.128 |
|
GF/GFS-D60F |
60 |
75 |
66 |
82.5 |
50 |
BF6L913D |
88 |
electronic |
Turbo |
228 |
102/125 |
6.128 |
|
GF/GFS-D75F |
75 |
94 |
82 |
102 |
50 |
BF6L913D |
88 |
electronic |
Turbo |
228 |
102/125 |
6.128 |
|
GF/GFS-D80F |
80 |
100 |
88 |
110 |
60 |
BF6L913D |
106 |
electronic |
Turbo |
228 |
102/125 |
6.128 |
|
GF/GFS-D90F |
90 |
13 |
99 |
124 |
50 |
BF6L913CD |
114 |
electronic |
Turbo |
221 |
102/125 |
6.128 |
|
GF/GFS-D100F |
100 |
125 |
11 |
137.5 |
50 |
BF6L913CD |
114 |
electronic |
Turbo |
221 |
102/125 |
6.128 |
|
GF/GFS-D120F |
120 |
150 |
132 |
165 |
60 |
BF6L913CD |
137 |
BF6L913D |
Turbo |
221 |
102/125 |
6.128 |
|
|
|
|
