MOTOR:

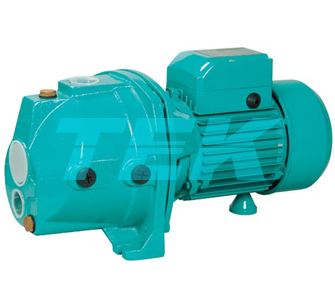

the pumps are coupled to an asynchronous, high efficiency TEK induction
motor of suitable size, which is quiet, closed and externally ventilated,
suitable for continuous duty.
INSULATION class B (Class F)
The thermal cutout replay (motor protector ) is incorporated in all single
phase motors.
Three phase motors require an adequate external motor protector, with
connections according to current standards.
protection: IP 44



Model	Power		Q.Max	H.Max	S.Max	Pipe Dia.	Packing Dim.	G.W	Qty/20ft
	KW	HP	L/min	m	m	mm	mm	kg	pcs
JDW-225	0.37	0.5	30	30	15	32x25	420x300x230	16.0	1000
JDW-370	0.55	0.75	40	35	20	32x25	420x300x230	17.4	1000
JDW-505	0.75	1	45	40	25	32x25	420x300x230	18.2	1000
